Direct Thermal — No Ink Required

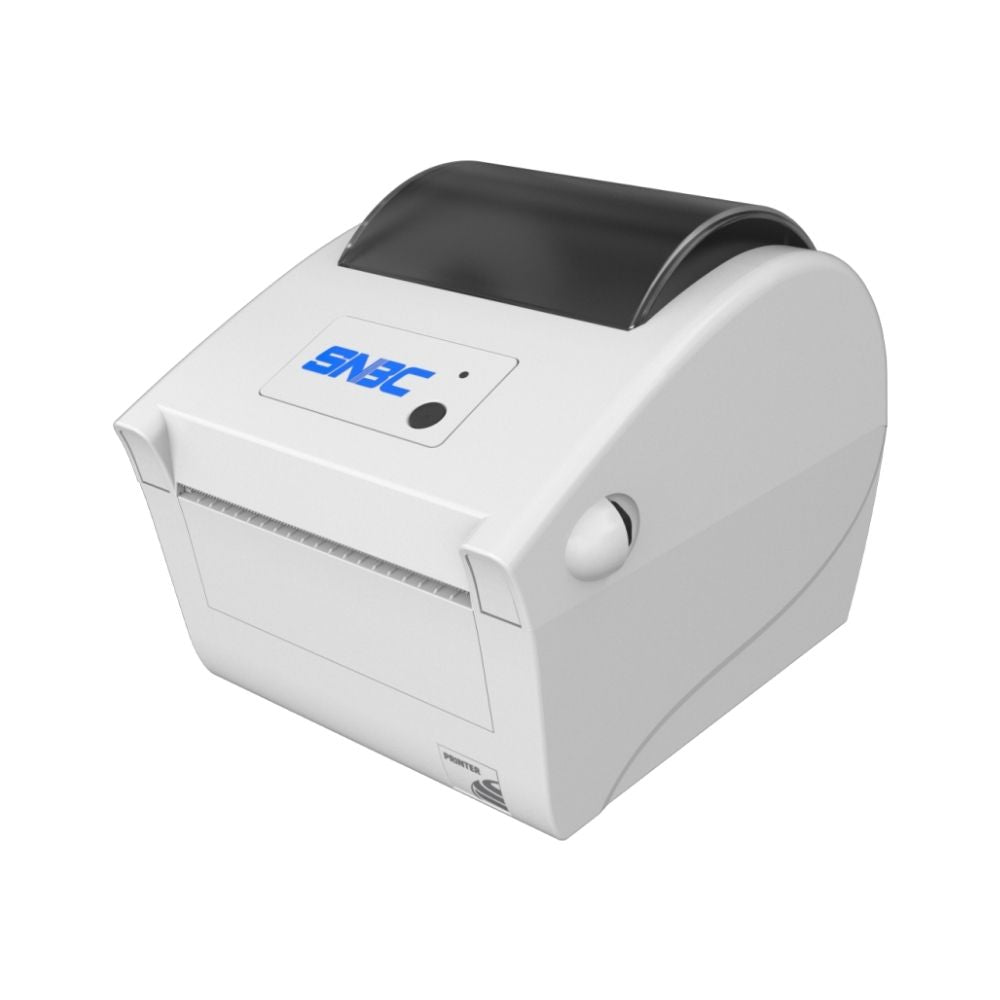

SNBC BTP-LF460
Thermal Label Printer
4″ High-Speed Label Printer — Plug & Play
The BTP-LF460 is a high-capacity 4″ direct thermal label printer built for demanding, high-volume environments. With a 152mm/s top print speed, a wide 108mm print width, and a generous 127mm paper compartment, it handles everything from retail shelf labels to shipping manifests and hospital wristbands — all without ink or ribbons.
152mm/s print speed
High-throughput printing for busy, volume-intensive operations
108mm print width
4″ wide media support for larger labels and documents
Auto label positioning
First-label detection eliminates wasted labels on start-up
USB, BT & Ethernet
Flexible connectivity for any wired or wireless setup
Multi-language support
BPLZ, BPLE, TSPL programming for broad compatibility

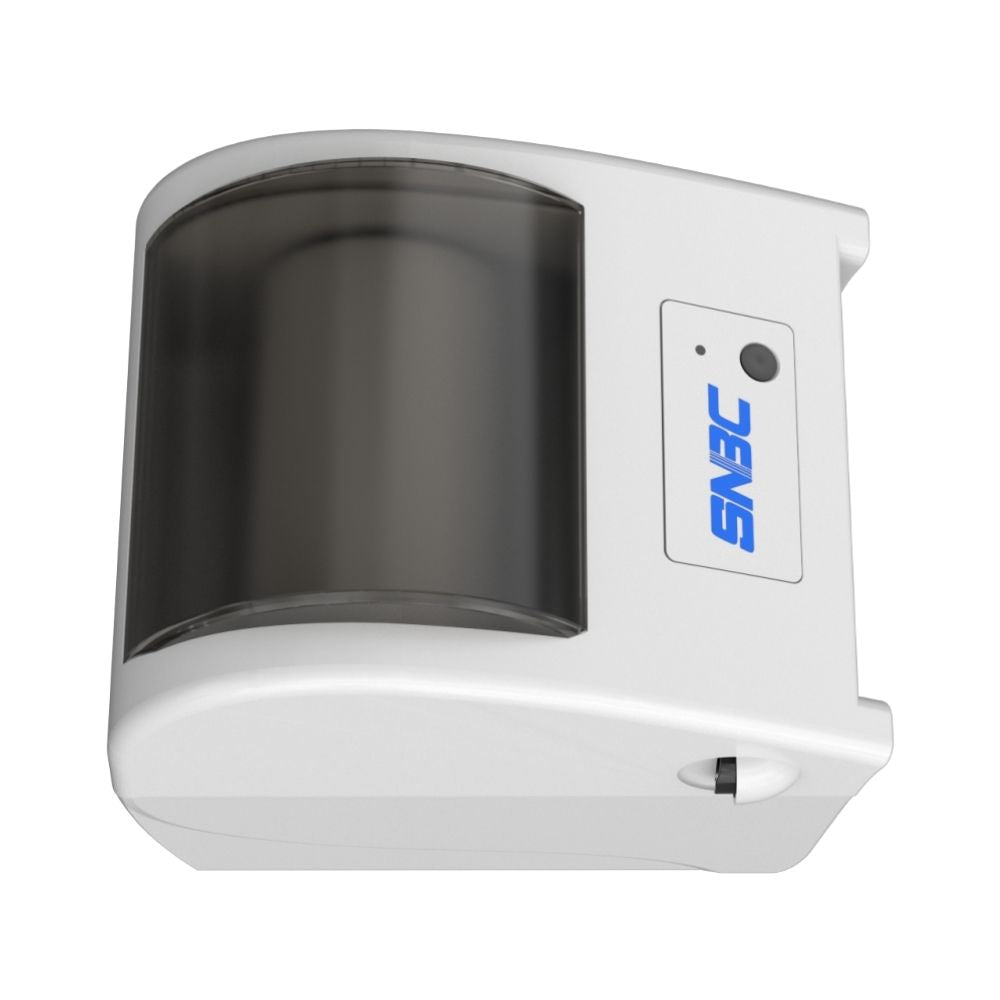

Transparent window design
Monitor paper levels at a glance without opening the unit
Print specifications
| Print mode | Direct thermal printing |
| Resolution | 203 DPI |
| Max print width | 108mm |
| Print speed | Up to 152mm/s |
| Programming | BPLZ, BPLE, TSPL |
| Processor | 32-bit RISC microprocessor |
| Memory | Flash 8MB; SDRAM 8MB; Extended Flash 16MB |
| Interface | USB, Bluetooth, Ethernet |
Paper & media
| Paper type | Label (folded/rolled), Marked, Continuous |
| Paper width | 20–120mm (±0.5mm) |
| Paper thickness | 0.06–0.19mm |
| Max roll OD | Ø127mm |
| Core ID | Ø12.5mm / 25mm |
| Paper output | Tear off |
Physical & electrical
| Dimensions (L×W×H) | 210 × 172 × 167mm |
| Weight | ~1.3kg |
| Power input | AC 100–240V, 50/60Hz, 1.5A |
| Power output | DC 24V / 2.5A |
| Certifications | CCC, SRRC, CE |
Environment & reliability
| Operating temp | 5°C–45°C |
| Operating humidity | 10%–90% RH (at 40°C) |
| Storage temp | -40°C–60°C |
| Storage humidity | 20%–93% RH (at 40°C) |
| Print head life | ≥30km (standard test conditions) |
| Sensor types | Near end, gap, black mark, head lift, overheat |
Ideal for
Retail & POS Financial services Logistics & freight Healthcare Manufacturing & factory Warehousing
No ink or ribbon required — direct thermal printing means zero consumables beyond the paper roll, keeping ongoing costs low and maintenance hassle-free.
