Direct Thermal — No Ink Required

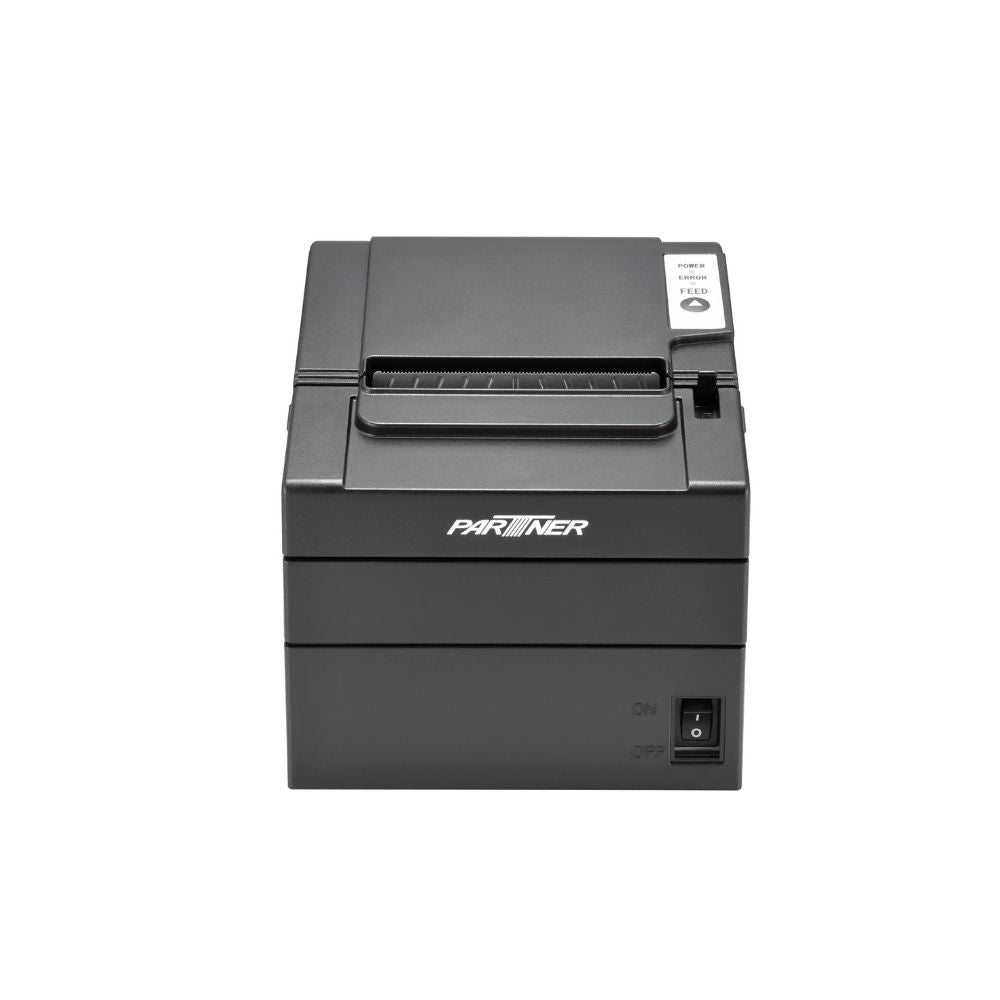

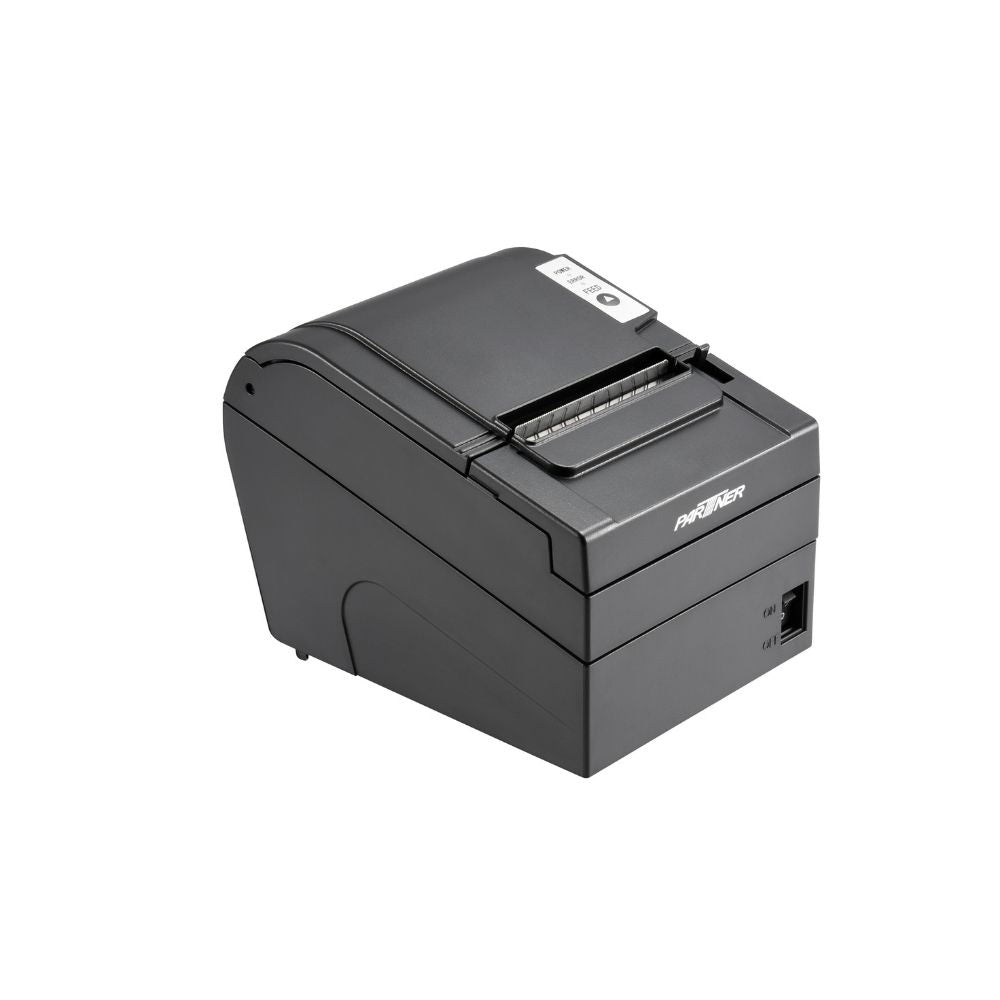

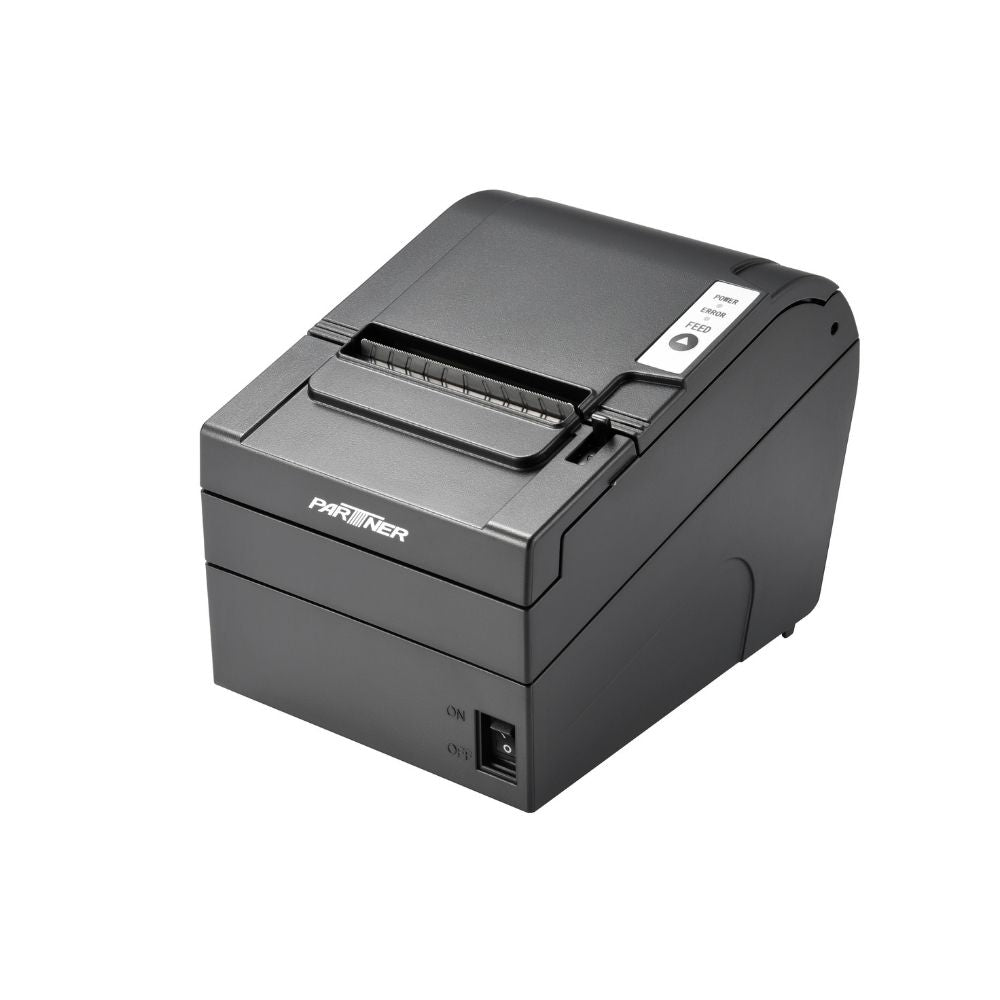

Partner Tech RP-630
Thermal Receipt Printer
High-Speed POS Receipt Printer — Plug & Play
The RP-630 is a reliable, high-performance receipt printer built for fast-paced retail and hospitality environments. Printing at 250mm/s with a built-in auto-cutter, drop-in paper loading, and wall-mount capability, it keeps your counter tidy and your transactions moving — without ink, ribbons, or fuss.
250mm/s print speed
Fast throughput to reduce customer wait times during peak hours

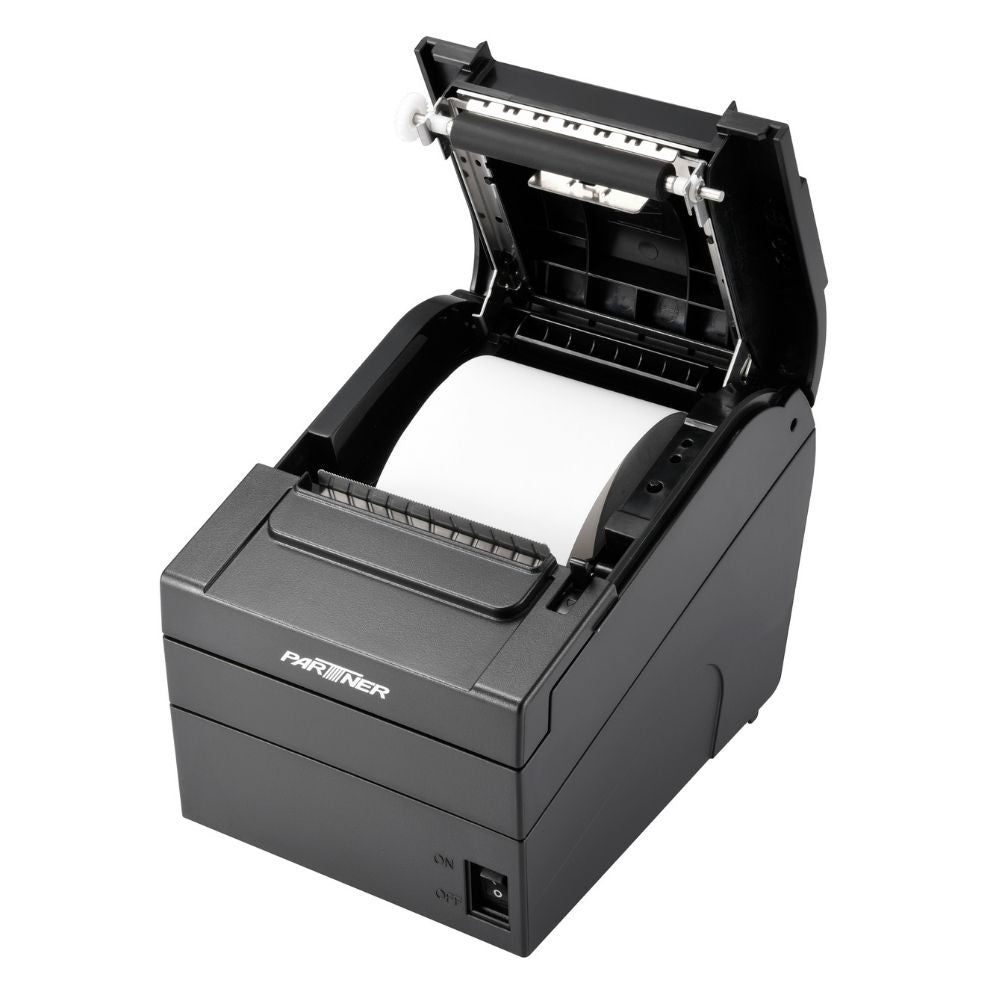

Drop-in paper loading
Top-load design for quick, hassle-free roll changes
Built-in auto-cutter
Clean receipt separation every time — rated 1,500,000 cuts
USB, Serial & Ethernet
Standard wired connectivity for seamless POS integration
Wall-mountable
Flexible installation to suit any counter or kitchen layout
Universal compatibility
ESC/POS emulation with Windows, Mac, Linux, OPOS & JavaPOS
Print specifications
| Method | Direct thermal |
| Resolution | 203 × 180 DPI |
| Max print width | 80mm |
| Print speed | 250mm/sec |
| Paper loading | Top |
| Emulation | ESC/POS compatible |
| Memory | RAM 2MB / Flash 4MB |
Paper & media
| Paper type | Thermal paper |
| Paper width | 57.5mm / 80mm |
| Paper thickness | 0.06–0.08mm |
| Max roll diameter | 83mm |
| Core inner diameter | 12.5mm ±0.5mm |
Physical & electrical
| Dimensions (L×W×H) | 200 × 145 × 145mm |
| Weight | 1.45kg |
| Colour | Black |
| Power type | External adaptor |
| Power input | AC 100–240V, 50/60Hz |
| Power output | DC 24V / 2.15A |
| Certifications | FCC, CE, CB, 3C, VCCI, Energy Star |
Reliability & environment
| Print head life | 150km |
| MCBF | 60,000,000 lines |
| Auto-cutter life | 1,500,000 cuts |
| Operating temp | 5°C–45°C |
| Storage temp | -40°C–60°C |
| Sensors | Paper end, cover open, black mark |

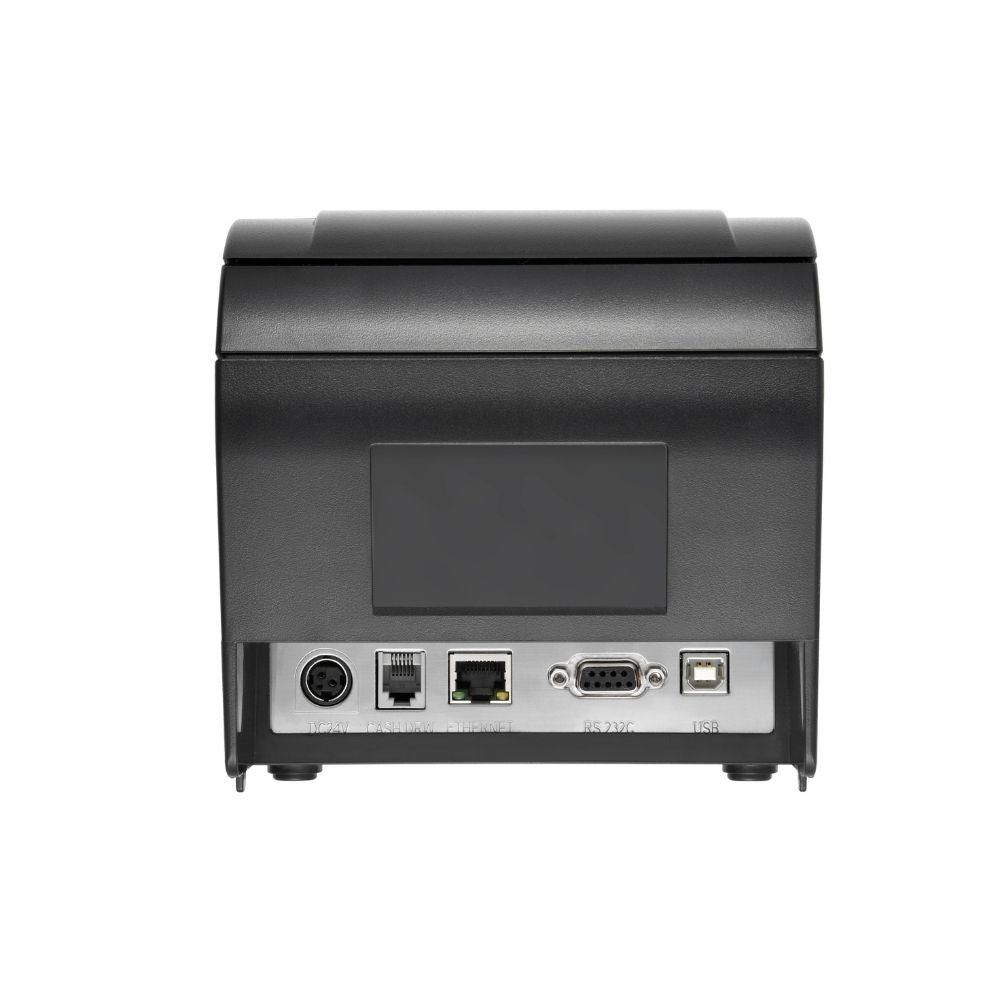

Connectivity & compatibility
Interface
USB + Serial (9-pin) + Ethernet
Emulation
ESC/POS command compatible
Driver support
Windows, Mac, LinuxCUPS, OPOS, JavaPOS
Installation
Countertop or wall-mount
Ideal for
Retail & POS Cafés & coffee shops Restaurants Takeaway & quick service Hospitality
No ink or ribbon required — direct thermal printing means zero consumables beyond the paper roll, reducing both operating costs and routine maintenance.
