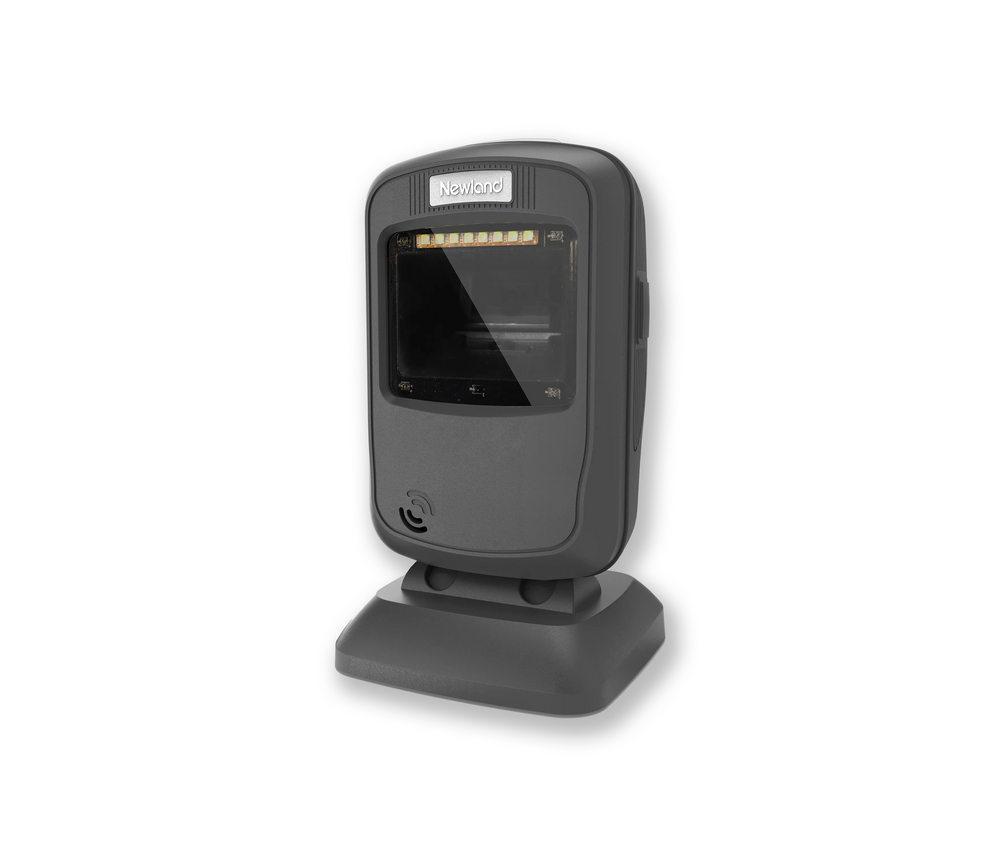

Desktop Hands-Free 2D Scanner
Newland FR4080
2D Desktop Image Scanner
Auto-Sensing Presentation Scanner — USB Plug & Play
The FR4080 is a high-performance hands-free desktop scanner built for fast-paced retail and service counters. Its 1280×800 CMOS sensor, intelligent IR auto-trigger, 2.5m/s motion tolerance, and wide 51°×32° field of view deliver instant, accurate reads of 1D, 2D, QR, and mobile screen barcodes — no button press, no alignment, no delays.
IR auto-trigger
Intelligent sensor detects and scans automatically — no button press needed
1D, 2D & QR codes
Reads all major symbologies including mobile screens and damaged codes
2.5m/s motion tolerance
Captures moving barcodes reliably — no need to slow down at checkout
1280×800 CMOS sensor
High-resolution imaging for sharp decoding of dense and small codes
IP52 & 1.2m drop-rated
Dust and moisture protection for reliable daily use at the counter
USB & RS-232
Flexible wired connectivity for easy integration into any POS system
Imaging & performance
| Image sensor | 1280 × 800 CMOS |
| Illumination | White LED |
| Resolution | ≥3mil |
| Motion tolerance | 2.5m/s |
| Field of view | 51° horizontal, 32° vertical |
| Scan angle — pitch | ±50° |
| Scan angle — roll | 360° |
| Scan angle — skew | ±45° |
| Min. symbol contrast | 25% |
Physical & electrical
| Interface | USB, RS-232 |
| Dimensions (W×D×H) | 83 × 81 × 148mm |
| Weight | 293g |
| Operating voltage | 5VDC ±5% |
| Power consumption | 1041mW (typical) |
| Current @ 5VDC | 219mA (typical) |
| Notification | Beep, LED indicator |
Environmental
| Operating temp | -20°C to 60°C |
| Storage temp | -40°C to 70°C |
| Humidity | 5%–95% (non-condensing) |
| ESD (air) | ±14 KV |
| ESD (direct) | ±8 KV |
| Drop resistance | 1.2m, 6 sides |
| Ingress protection | IP52 |
Certifications
| EMC | FCC Part 15 Class B, CE EMC Class B |
| Environmental | RoHS compliant |
Typical depth of field
EAN-13
10–210mm
13mil
QR Code
10–180mm
15mil
Ideal for
Retail & POS Cafés & coffee shops Restaurants Pharmacies Hospitality Supermarkets
The built-in IR auto-trigger means no button press and no manual aiming — simply present a barcode and the FR4080 reads it instantly, keeping checkout queues moving at peak hours.
