Wired 2D Barcode Scanner

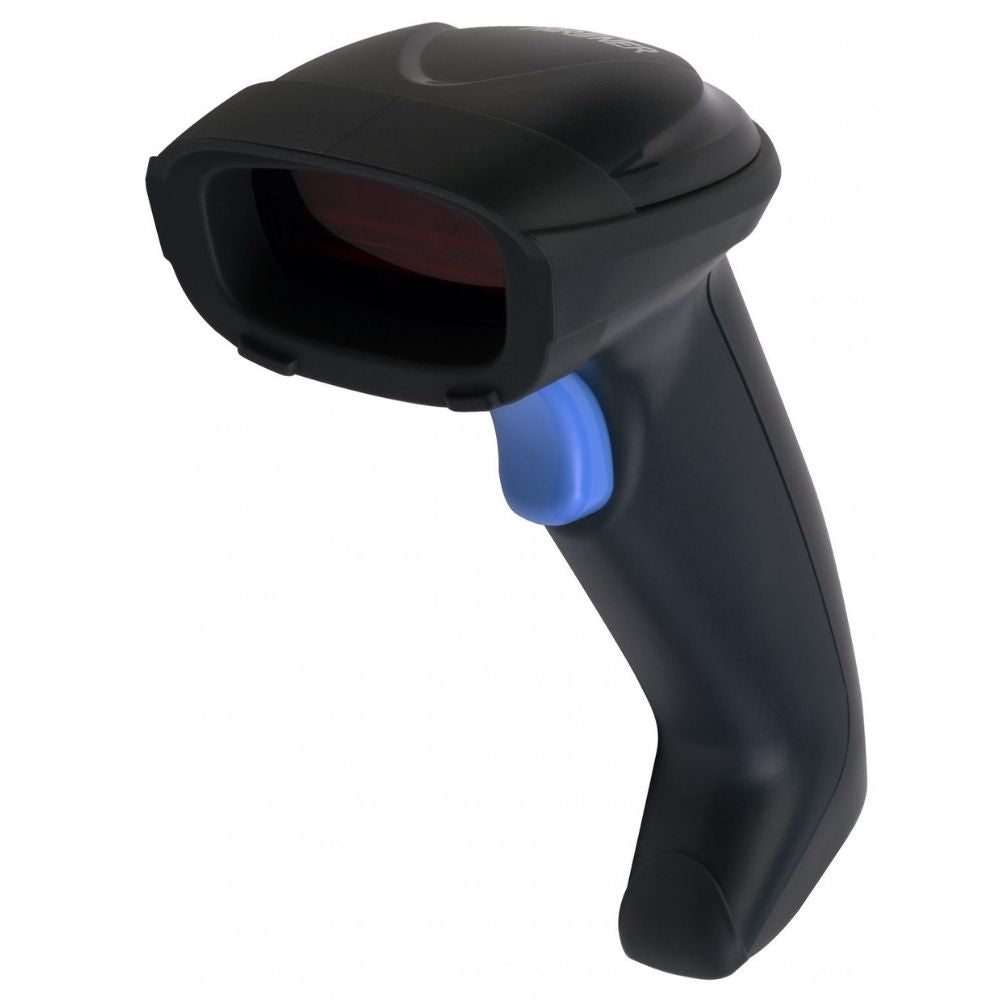

Partner Tech SC-NL201
2D Barcode Scanner
Handheld & Presentation Mode — USB Plug & Play
The SC-NL201 is a compact, versatile 2D imaging scanner built for busy retail, café, pharmacy, and hospitality countertops. Its 752×480 CMOS sensor reads 1D, 2D, and QR codes — including damaged and mobile screen codes — at up to 60fps, while omnidirectional scanning and a presentation stand mean staff can scan without careful alignment, keeping queues moving.
1D, 2D & QR codes
Reads all major symbologies including mobile screen and damaged codes
Omnidirectional scanning
360° tilt — captures barcodes from any angle, no precise alignment needed
Handheld & presentation modes
Use in-hand or seat in the included stand for hands-free scanning
Up to 60fps scan rate
Fast decode keeps transactions flowing during peak trading hours
USB plug & play
USB-HID KBW and USB-COM — works with Windows and Mac out of the box
IP42 & 1.8m drop-rated
Rugged enough for the daily demands of a busy retail counter
Imaging & performance
| Scan method | CMOS area sensor, 752 × 480px |
| Scan rate | Up to 60fps |
| Resolution | 0.127mm / 5mil (PCS 0.9) |
| Light source | Green LED aiming + red illumination |
| Interface | USB-HID KBW, USB-COM |
| Field of view | 35° horizontal, 23° vertical |
| Scan angle — pitch | ±50° |
| Scan angle — tilt | 360° |
| Scan angle — skew | ±50° |
| Power | DC 5V, max 160mA |
Physical & environmental
| Dimensions | 70 × 85 × 175mm |
| Weight | 126g (cable: 76g) |
| Operating temp | -30°C to 60°C |
| Storage temp | -40°C to 70°C |
| Humidity | 5%–90% (non-condensing) |
| Drop resistance | 1.8m onto concrete |
| Ingress protection | IP42 |
| Backlight support | Yes |
| Ambient light immunity | Up to 100,000 lux (sunlight) |
Typical depth of field
EAN-13
40–305mm
13mil
QR Code
20–205mm
15mil
Data Matrix
40–160mm
10mil
Ideal for
Retail & POS Cafés & coffee shops Restaurants Pharmacies Hospitality

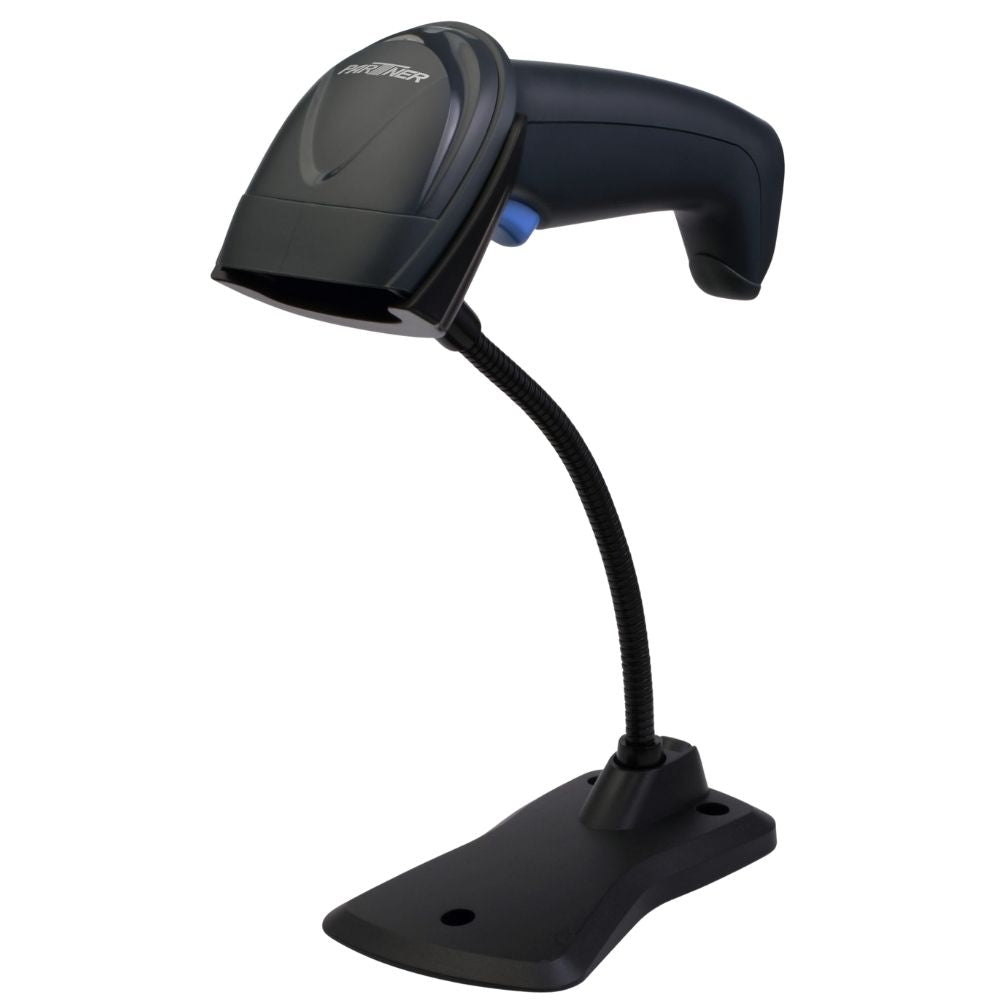

The included stand enables hands-free presentation mode — staff simply pass items in front of the scanner without needing to pick it up, ideal for high-volume checkouts where speed matters.
