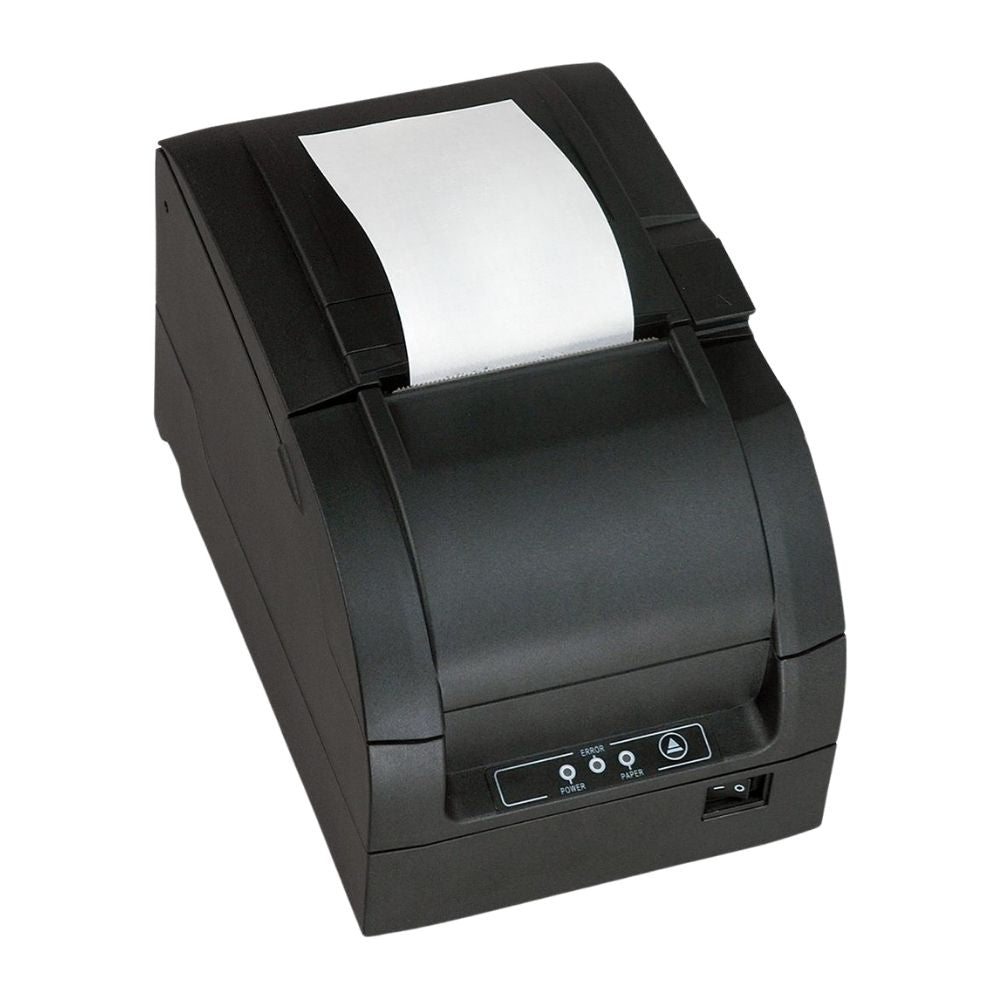

Impact Receipt Printer
BTP-M300A
Impact Printer
SNBC — Kitchen, Bar & POS Ready
The SNBC BTP-M300A is a reliable, high-speed impact receipt printer built for busy POS, kitchen, bar, and data-logging environments. Clear archive-quality receipts, industry-proven durability, jam-free paper pull technology, and an internal power supply combine to deliver consistent performance across the most demanding hospitality and retail settings.
Impact printing
Prints through multi-ply paper — ideal for kitchen dockets and order tickets requiring carbon copies
Two-colour printing
Supports black/red output using standard ERC-38 ribbon cartridges for highlighted receipts
4.7 lines per second
Fast throughput keeps up during peak service — no bottlenecks at the counter or kitchen
Auto cutter
Selectable full or partial cut with a 1.8 million cut lifespan for reliable long-term operation
Drop-and-print loading
Quick, easy paper changes with built-in paper-end and adjustable near-end sensors
Wall-mount capable
Flexible placement for kitchens, bars, and service counters with internal power supply included
180K hrs
MTBF
18M lines
MCBF
150M chars
Printhead life
1.8M cuts
Cutter life
Print specifications
| Printing method | Impact |
| Print speed | 4.7 lps / 19.6mm per second |
| Characters per line | Font A: 33/35 · Font B: 40/42 |
| Character size | Font A: 9×9 · Font B: 7×9 |
| Paper cutting | Auto-cutter, full or partial cut |
| Ribbon cartridge | ERC-38 (black/red) |
Paper specifications
| Paper width | 57.5 / 69.5 / 76 / 80mm ±0.5mm |
| Max roll diameter | 83mm |
| Paper thickness | 0.06mm – 0.085mm |
| 2-ply thickness | 0.05–0.08mm · Total ≤ 0.14mm |
Connectivity & compatibility
Interfaces
USB
Serial
Ethernet
Command set
ESC/POS
OS & platforms
Windows 7/8/10/11
Windows Server
Linux · OPOS · JavaPOS
iOS · Android
Hardware
Cash drawer: up to 2 (+24VDC)
Buffer: 8KB RAM / 128KB Flash
Power: 24V DC ±5% internal
Physical & environment
| Dimensions (W×H×D) | 159 × 241 × 152mm |
| Weight | 4kg |
| Operating temp | 5°C–45°C |
| Operating humidity | 20%–90% RH (non-condensing) |
| Power consumption | 1.5A / 36W |
| Safety & EMI | FCC / RoHS |
Reliability
| MTBF | 180,000 hours |
| MCBF | 18,000,000 lines |
| Printhead life | 150,000,000 characters |
| Cutter life | 1,800,000 cuts |
Ideal for
Kitchen order printing Bars & cafés Retail POS Takeaway & quick service Hospitality Data logging
Proven jam-free "paper pull" technology and a 150 million character printhead life make the BTP-M300A one of the most reliable impact printers available for high-volume hospitality and retail environments.
