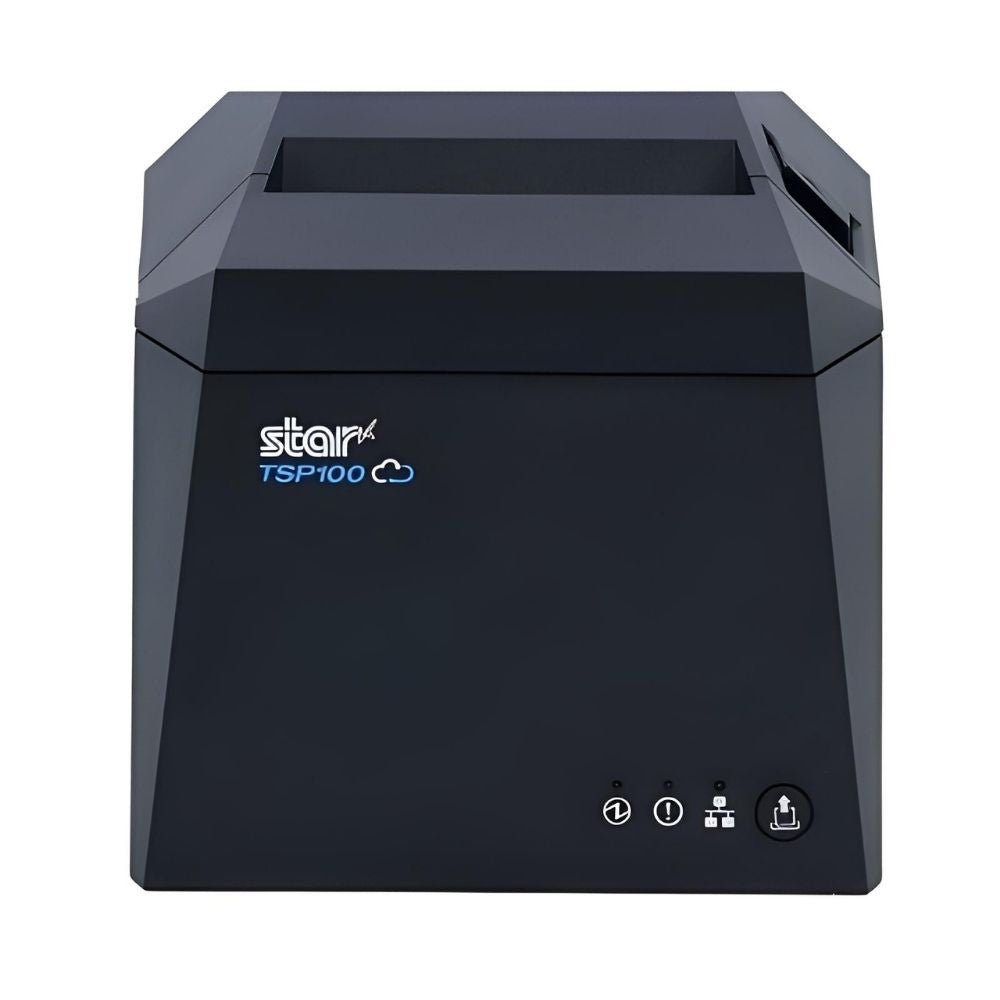

Star Micronics — Cloud Thermal Receipt Printer
TSP143IV
Cloud Thermal Receipt Printer
250mm/s · CloudPRNT · Ethernet + USB-C + USB-A · 4-Year Warranty
The Star Micronics TSP143IV is the next generation of the iconic TSP143 series — now 20% smaller, with an internal power supply, integrated CloudPRNT technology, and enhanced USB connectivity for Android tablets. Whether you're running a tablet POS, a web-based ordering platform, or a cloud restaurant system, the TSP143IV has every angle covered.
250mm/s print speed
Fast, high-quality receipt printing with a precision guillotine autocutter
Integrated CloudPRNT
Print directly from web-based apps — ideal for Click & Collect and online kitchen orders without a local POS
Ethernet + USB-C + USB-A
Flexible connectivity for Windows, Linux, macOS, and Android devices
Android Data & Charge (AOA)
USB-A with Android Open Accessory support — power and communicate with Android tablets via a single cable
20% smaller than TSP143III
Internal power supply and compact footprint saves valuable counter space — runs horizontal or vertical
Plug & play setup
Star Quick Set-Up Utility makes installation simple — all cables and paper guide included in the box
Print specifications
| Print speed | 250mm/sec |
| Resolution | 203 DPI |
| Paper width | 80mm (58mm with paper guide) |
| Print width | 72mm (80mm paper) / 50.8mm (58mm paper) |
| Paper thickness | 0.049mm–0.085mm (49µm thin paper supported) |
| Max roll diameter | 83mm |
| Columns | 48 / 64 col. (depending on paper width) |
| Autocutter | Partial guillotine — 2 million cuts |
| Sensors | Paper end, cover open |
Physical & electrical
| Dimensions (W×D×H) | 140 × 169 × 123mm |
| Weight | 1.3kg |
| Power supply | Internal (power cable included) |
| Power — printing | 43W |
| Power — standby | 3.5W |
| Orientation | Horizontal or vertical |
| Wall mount | Integral wall mount included |
| Reliability (MCBF) | 60 million lines |
| Certification | Energy Star certified |
| Warranty | 2-year standard warranty |
Connectivity
Wired
Ethernet LAN
USB-C (Windows/Linux/macOS)
USB-A with AOA (Android)
Wireless (optional)
Wi-Fi via Star MCW10 Wireless LAN Adapter
Cloud
Star CloudPRNT (integrated)
StarPrinter.online
Star Micronics Cloud Services (SMCS)
Android Data & Charge
USB-A with Android Open Accessory (AOA) — single-cable data and charging for compatible tablets
What's in the box
| Included | Power cable, USB cable (USB-C to USB-A), Ethernet LAN cable, 58mm paper guide |
| Optional accessories | MCW10 Wireless LAN Adapter, Buzzer (BU01-24-A), Melody Buzzer (mC-Sound), Customer Display (SCD222U) |
Ideal for
Retail & POS Cafés & coffee shops Restaurants Click & Collect Cloud & tablet POS Hospitality
With integrated Star CloudPRNT, the TSP143IV can receive and print orders directly from web-based applications — no local tablet or POS system required. Perfect for online ordering, kitchen printing, and omni-channel retail.
